The Robo SawJet was the first robotic-based stone-cutting saw introduced to the industry.
Today, BACA Systems has over 650 robots in operation across stone fabrication shops throughout North America.

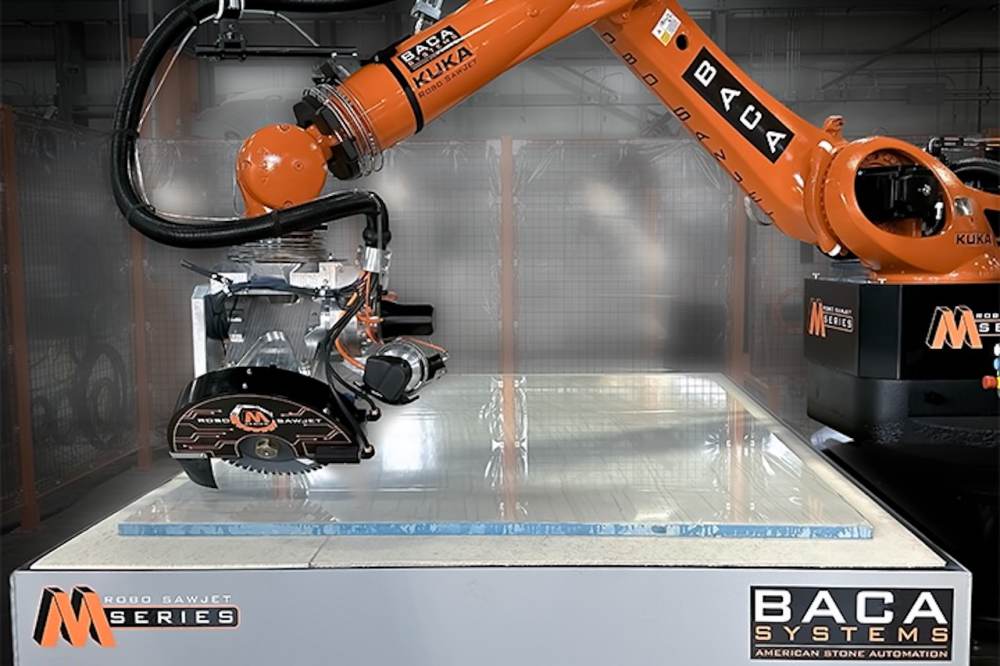

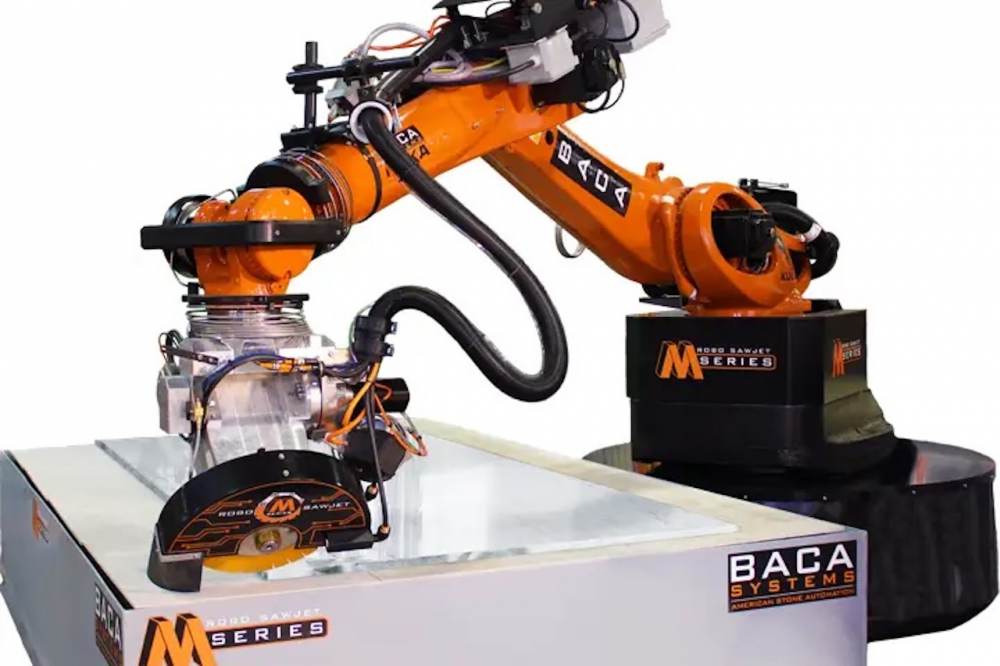

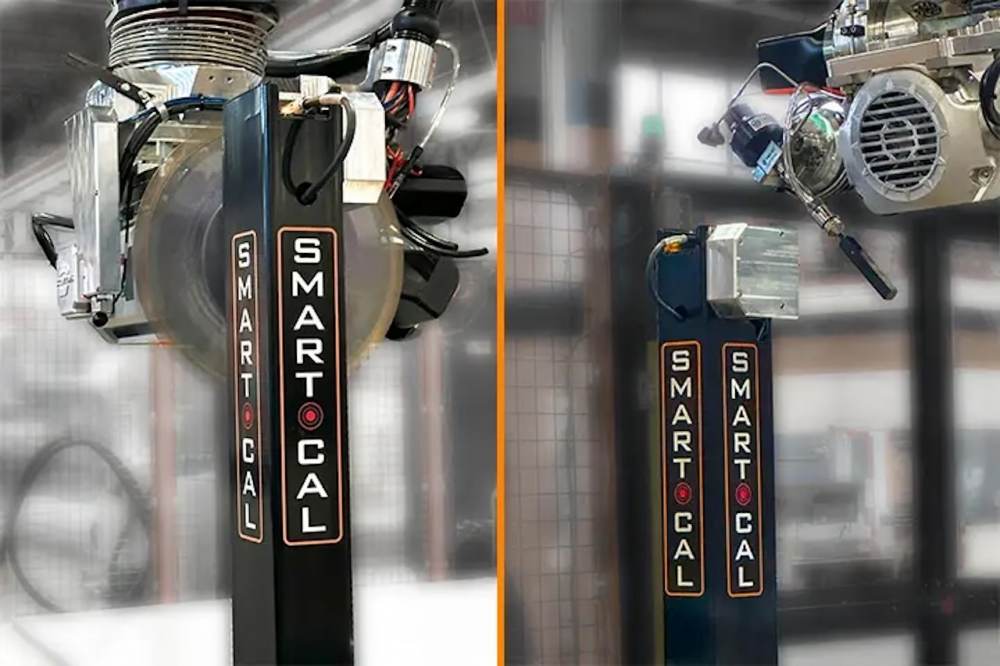

The M Series is a state-of-the-art cutting machine designed for seamless mitering, integrating both sawblade and waterjet capabilities in a single unit. Its expansive mitering envelope allows it to process super jumbo slabs with ease. Enhanced by Alphacam and BACA’s custom toolbar, programming is intuitive and efficient. The machine features precise multi-point slab thickness adjustment for mitering and a groundbreaking patent-pending auto-calibration process for unmatched accuracy.
Full Mitering Capability

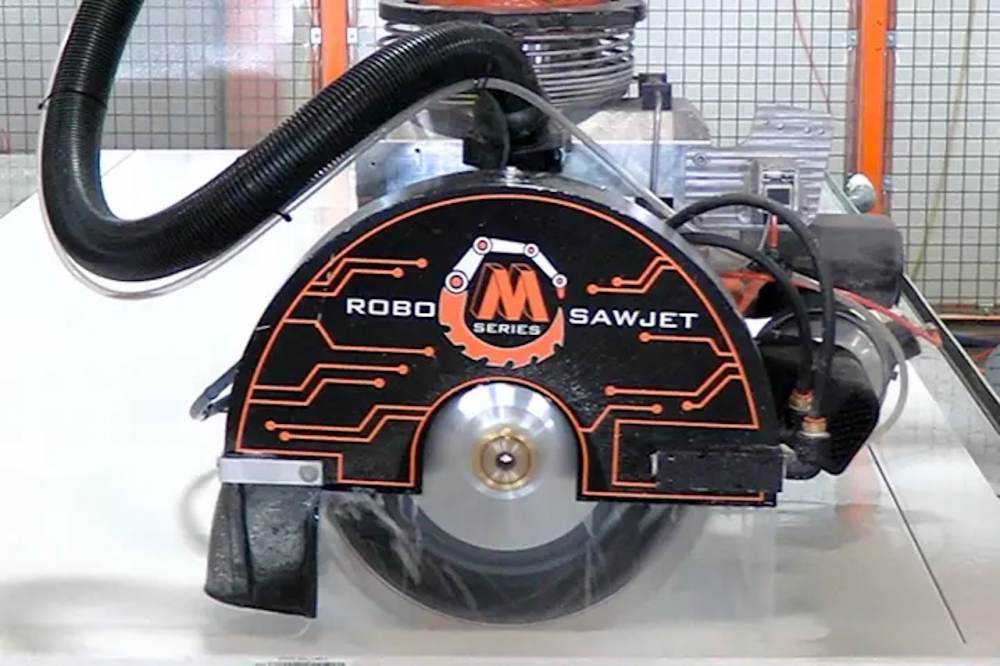

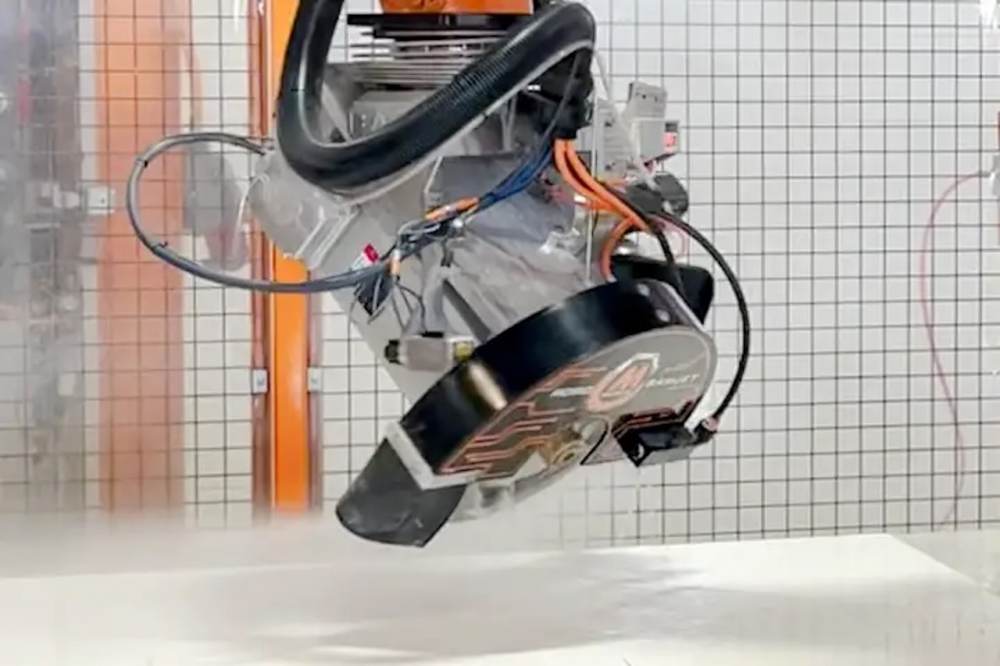

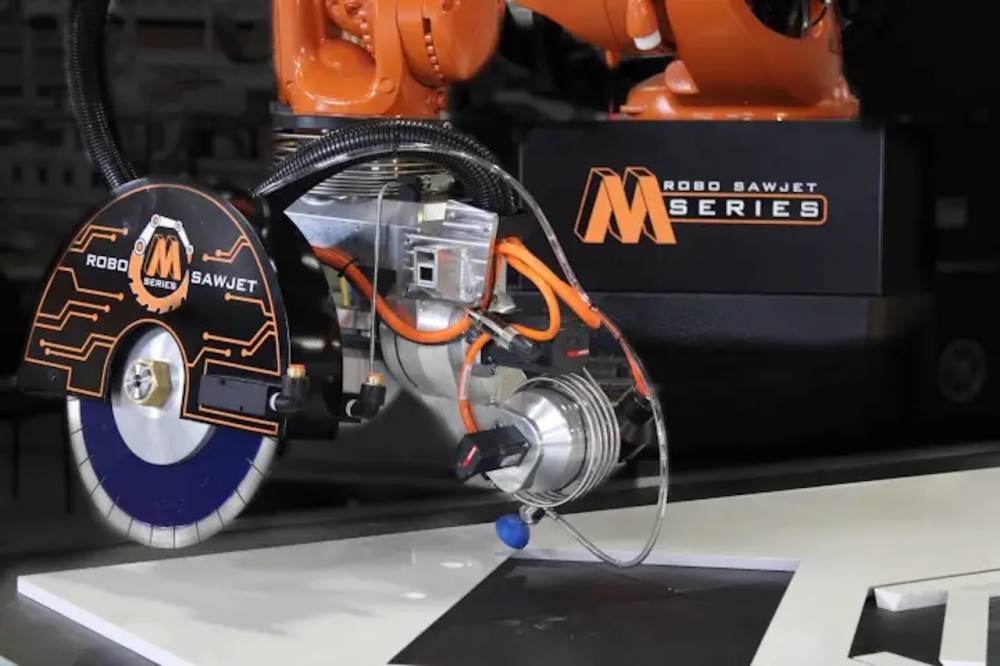

The Robo SawJet M Series is a high-performance cutting system engineered for superior mitering, seamlessly combining saw blade and waterjet technology for full-process efficiency. Ideal for diverse applications, it excels in precision mitering of inside corners (L-shapes), integrated sinks, and custom countertop designs. The saw blade is optimized for straight-run countertops, delivering faster cuts at a lower operational cost, while the waterjet is strategically utilized for intricate non-linear cuts—such as sinks and arcs—while reducing material waste by eliminating blade overtravel.
High Reliability & Minimal Maintenance

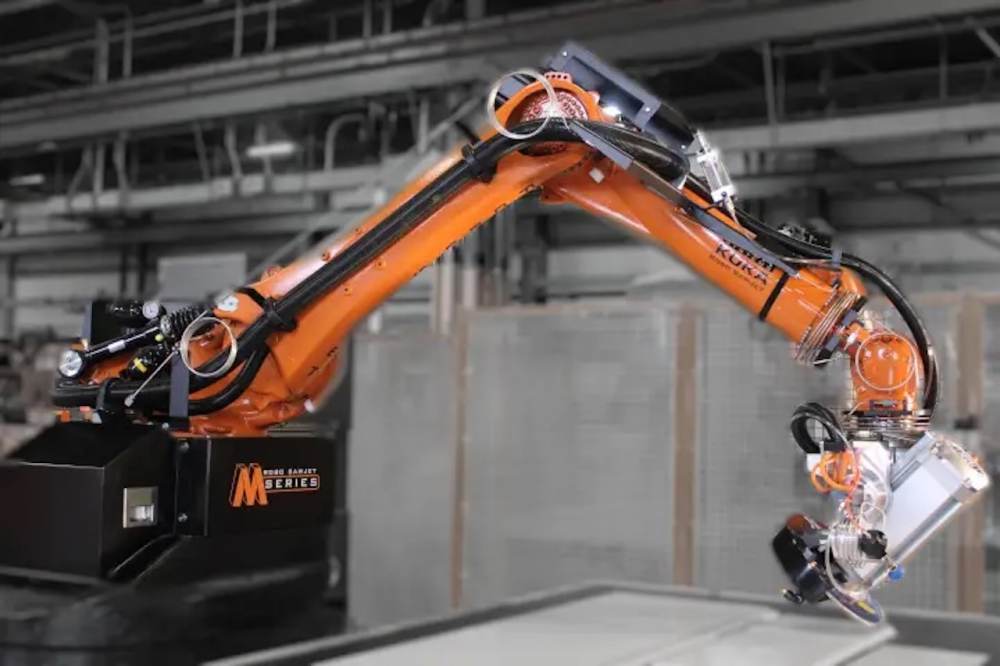

At the core of the Robo SawJet M Series is a durable, foundry-grade KUKA KR 210 robot, powered by a high-performance 26HP saw motor and a 50HP H2O waterjet. Known for exceptional reliability and precision, KUKA robots are trusted in demanding industries like automotive and aerospace. Unlike custom-built gantry systems, robotic solutions require minimal maintenance—annual servicing involves greasing just two zerk fittings, with an oil change needed only every 10,000 hours or five years, whichever comes first
The M Series also features a streamlined waterjet maintenance system. With waterjet lines positioned externally on the robot, users can easily access them without dealing with traditional cat tracks found in competing machines. This intuitive design is further enhanced by BACA’s Waterjet Made Easy exchange program, simplifying upkeep for maximum efficiency.
Increase Material Yield By 10-20%
The waterjet functionality eliminates blade overtravel, enabling countertop pieces to be nested closely together for maximum slab utilization. This Tetris-style cutting approach ensures you get the most out of each bundle, reducing material waste. When small parts are needed that don’t fit within the initial slabs, the precision of the waterjet minimizes the need to purchase additional slabs, helping to optimize costs and efficiency for every project.
Reduce Labor By 3-4 Hours (Per Slab)

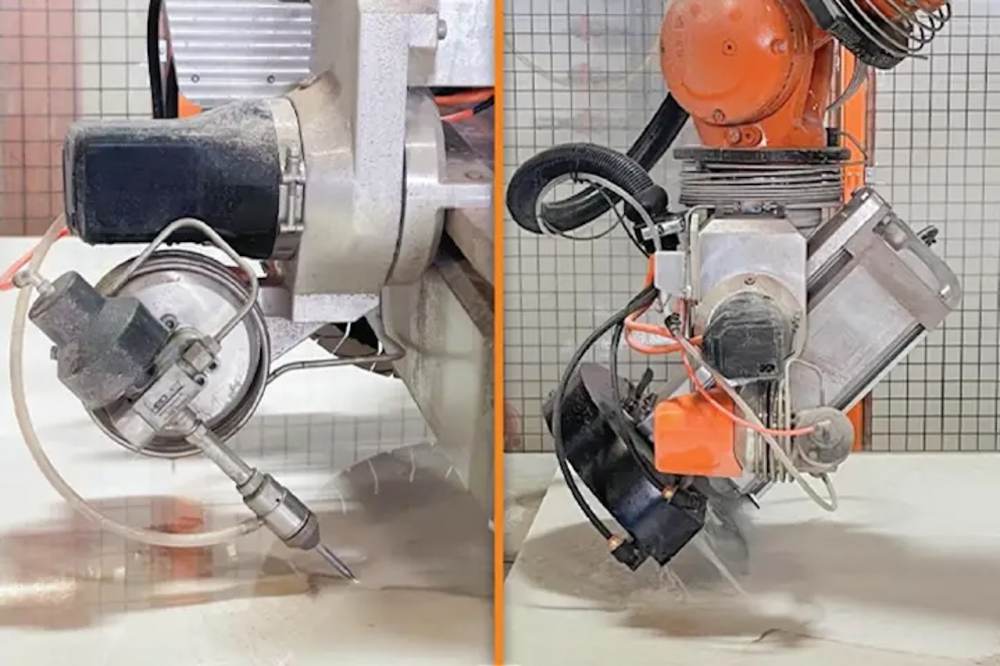

Powered by a high-performance 26HP saw motor and a 50HP H2O waterjet, the M Series delivers exceptional precision for even the most intricate countertop designs. The waterjet efficiently cuts inside corners, enabling complex miters to be assembled with minimal hand fabrication. It also excels in shaping sinks, arcs, radii, and other non-linear cuts, significantly reducing downstream labor. Meanwhile, the saw ensures seamless execution of straight 90-degree cuts and mitered edges for a streamlined fabrication process.
Increase CNC Router Output By 30%
Fabricators using CNC routers can boost output by 30% per machine by pre-shaping non-linear cuts with the SawJet’s waterjet. By handling sinks, arcs, radii, and other intricate cuts upfront, the CNC router can focus solely on edging and polishing, streamlining the fabrication process. This efficiency becomes even more crucial with a dual-table SawJet, which can supply up to three CNC routers, maximizing production while keeping costs in check—especially since the investment in a SawJet and a fully tooled CNC router is comparable. Additionally, this method extends CNC router spindle life by eliminating the side-load stress from countertop shaping, reducing costly spindle replacements.
Upgrade to Dual Table

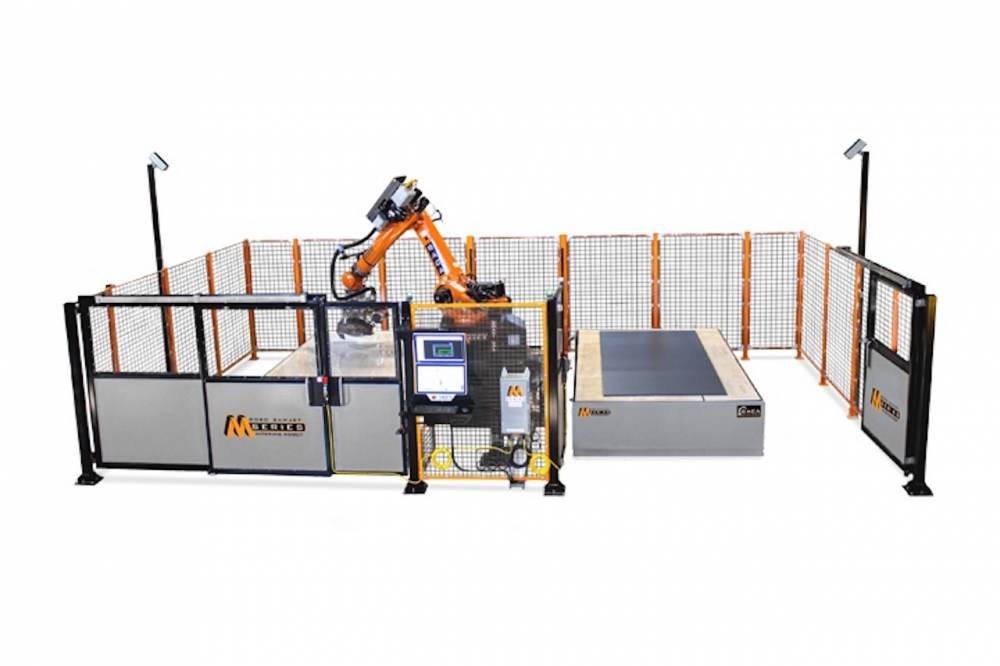

The M Series is designed for future scalability, offering the option to upgrade from a single table to a dual table as production needs grow. Adding a second table can increase output by up to 100%, effectively doubling production capacity. This setup allows one table to be loaded or unloaded while the other remains in operation, minimizing downtime and maximizing efficiency. Investing in a scalable solution like the M Series safeguards your investment as your business expands. Unlike traditional bridge-based gantry machines, which require selling and repurchasing equipment to scale, the M Series provides a cost-effective, streamlined path to growth.
Small Footprint
Building on the legacy of the Robo SawJet 1.0 and 2.0, the M Series features a compact footprint, making it more space-efficient than bridge-based alternatives. This design is especially valuable as real estate costs continue to climb, allowing fabricators to maximize productivity without requiring excessive floor space.
3 Sides Of Access

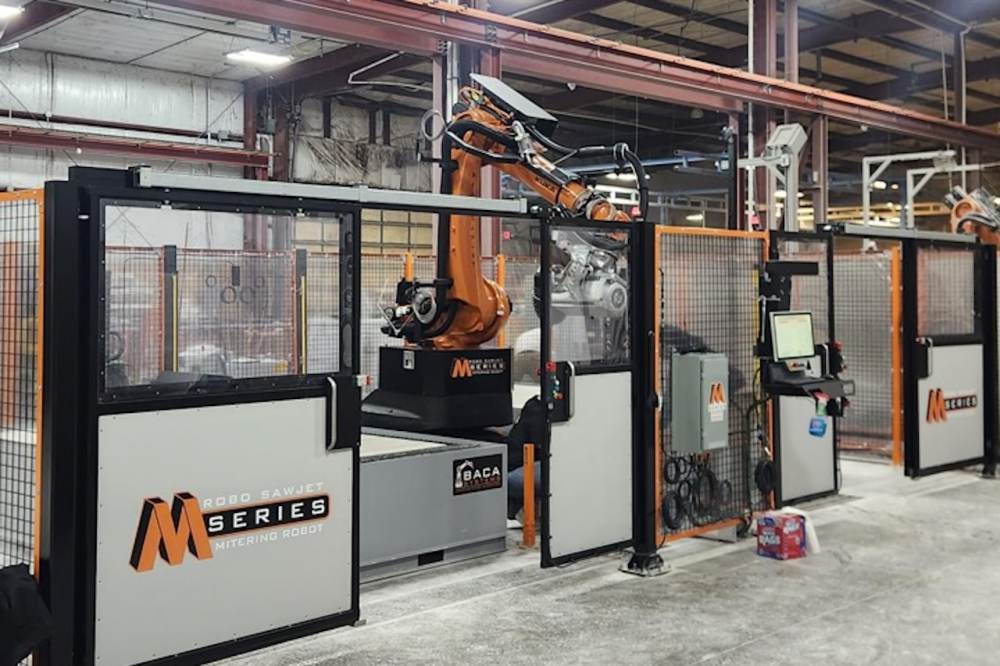

The M Series is designed with low-profile tanks accessible from three sides, offering a significant advantage over bridge-based machines that limit access to the front. This open design eliminates the need for operators to climb onto the table to retrieve hard-to-reach pieces, improving both safety and efficiency. Fabricators can easily transfer pieces directly from the table onto a wheeled cart, streamlining workflow and reducing manual handling.
Specifications |
|
Cutting Table Size |
90″ x 144″ (Tilt tables optional) |
Upgradeable |
Single table setup can be upgraded to dual as your business grows |
Saw Motor |
26 HP Saccardo Motor w/ Variable Frequency Drive (VFD) 0 – 2,500 RPM |
WaterJet |
5 Inches H2O Jet 50 HP / 60,000 PSI Upgradeable to 50 HP / 90,000 PSI |
Flexible Programming |
Programming at machine. Programming from office. Barcode scanning available. |
Vein Matching |
VeinMatch software included with machine at no charge, Slabsmith compatible |
Kuka Robot |
Requires virtually no maintenance for 10,000 hours of operation, limiting downtime and increasing productivity |
Legendary Customer Service |
US Service. Next day parts |
