NEW STONE EQUIPMENT:
All Used Stone Equipment is now your one-stop shop for both pre-owned and brand-new equipment. In addition to our extensive selection of reliable used machinery, we’re proud to offer a range of cutting-edge new equipment to meet the evolving needs of the stone fabrication industry. Whether you’re looking for cost-effective pre-owned solutions or the latest in fabrication technology, we’ve got you covered.

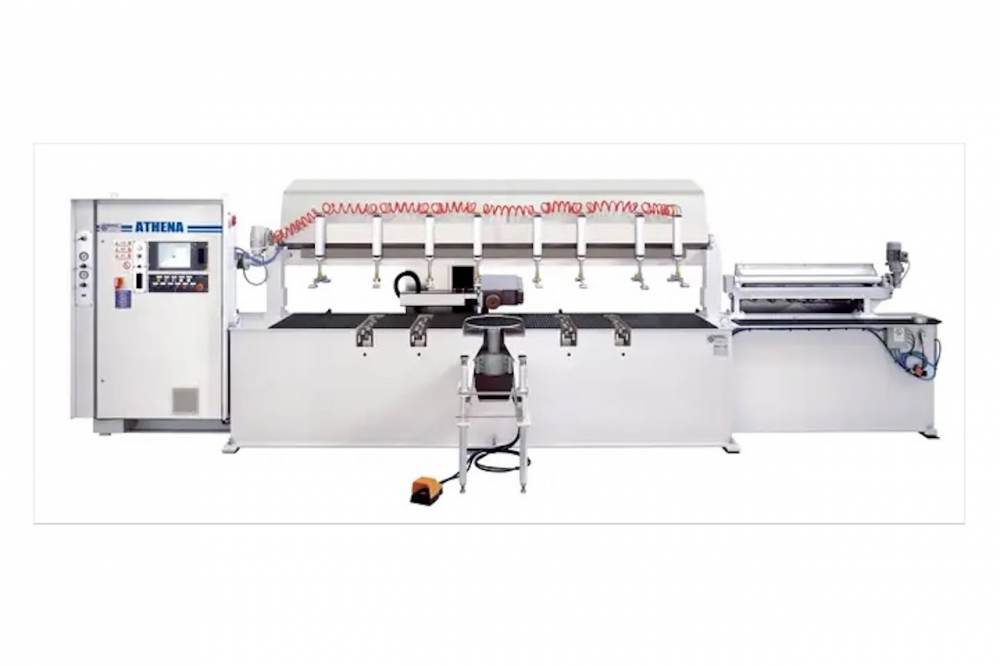

Horizontal Multi Edge Polisher Athena

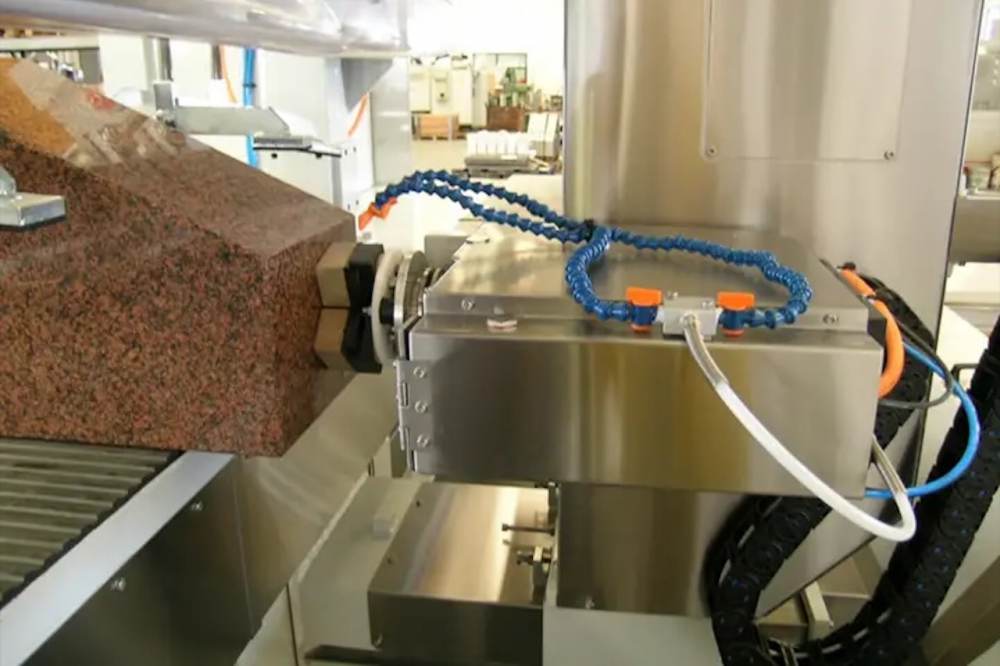

Fully automatic single-head CNC edge polishing machine designed for marble, granite, engineered quartz, and ceramic, capable of polishing both straight and shaped edge profiles with precision and efficiency.
Easy 2 Use
The software includes a selection of popular edge profiles, allowing operators to quickly and easily choose the desired design. Users can modify, add, or adjust existing profile parameters, such as bevel dimensions, which automatically updates the tool sequence and working settings. The Athena is capable of processing up to five parts simultaneously, accommodating varying material thicknesses and different edge details for maximum efficiency.
Multi Edge Processing

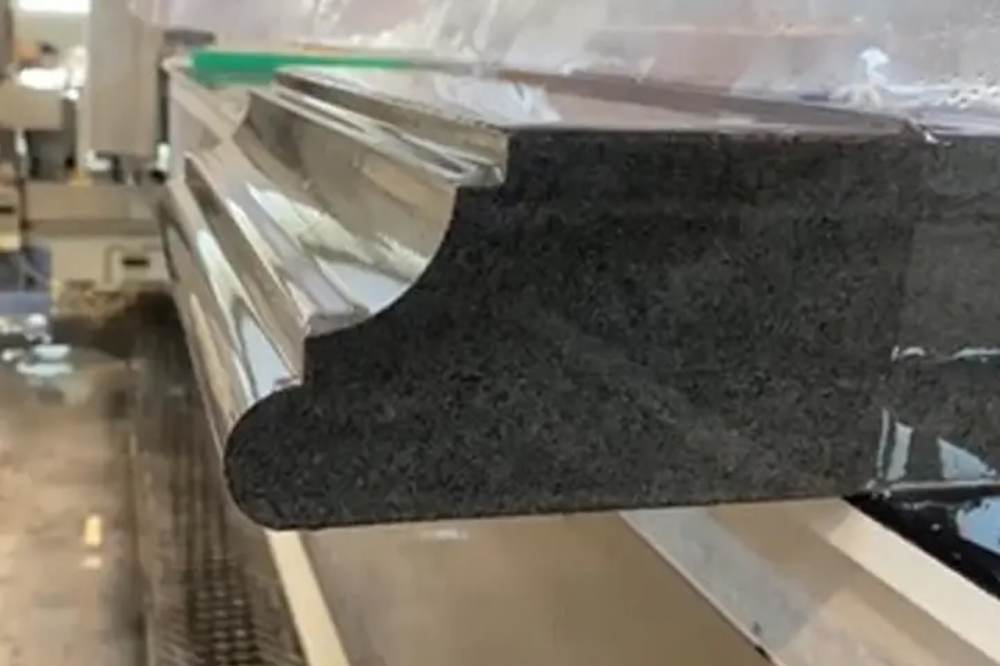

With exceptional versatility and precision, it effortlessly crafts a variety of edge profiles, from sleek bevels to intricate bullnose designs, meeting diverse customer preferences and design specifications.
Built To Last
To ensure durability and prevent rust, the machinery’s structure and key components undergo a specialized metallization process. This multi-step treatment includes sandblasting, zinc wire metallization, a zinc phosphate epoxy primer, and a final coating of high-solid polyacrylic enamel. Additionally, the painted covers receive a cataphoresis treatment, involving degreasing, spray or dip pretreatment, an electroplating bath for uniform paint adhesion, thorough rinsing, and final curing in a furnace. This advanced process guarantees superior corrosion resistance and long-lasting protection.
Specifications |
|
| Workable table size | 137 3/4 Inches |
| Minimum width | 11.4 Inches |
| Minimum length | 7.9 Inches |
| Working thickness minimum (straight edges) | 2/5 Inches |
| Working thickness maximum(straight edges) | 13 3/4 Inches |
| Working thickness minimum (shaped edges) | 2/5 Inches |
| Working thickness maximum (shaped edges) | 9 3/4 Inches |
| Total Weight | 12,346 Pounds |
| Maximum Water Consumption | 2.65 GPM |
| Maximum Air Consumption | 14 Gal/1’ |
| Dimensions | 288”x91”x87” |
| Power Requirements | 480V/60Hz |
Call for details! 877-959-9192
